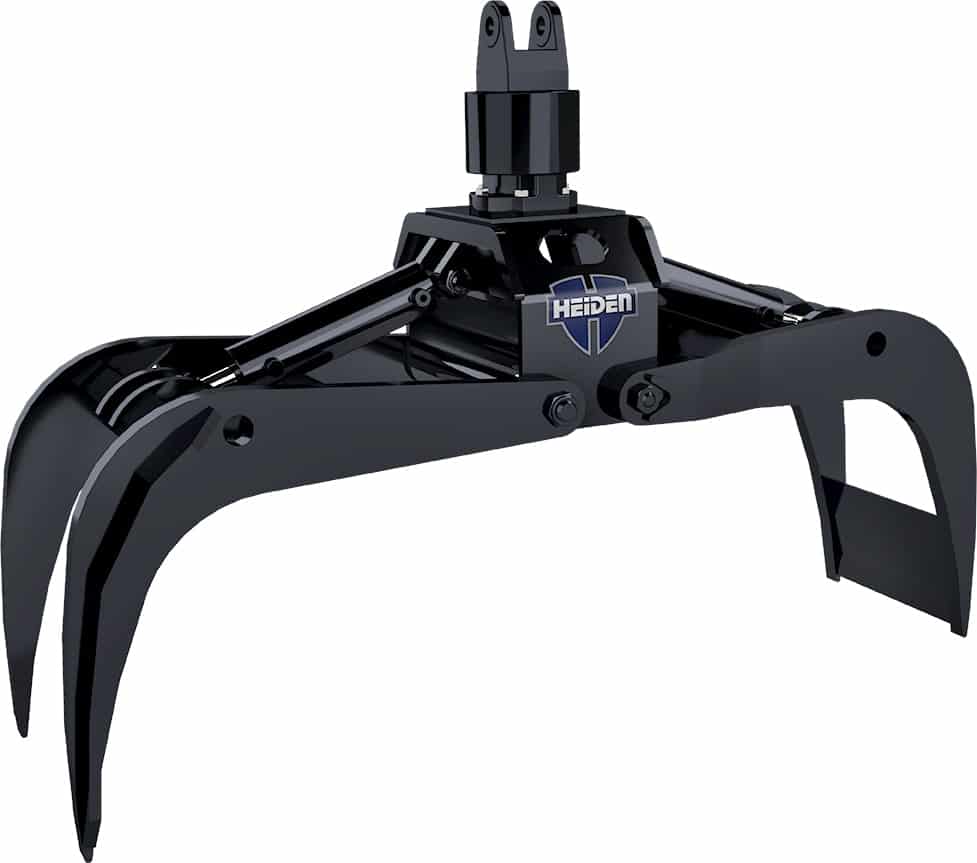

HC20-AHR-3
- Proven straight tine design used by many Class I railroads
- 73” open 7” close
- 11 ton HD continuous rotation standard
- 3 ½” bore 3000 psi cylinders
- 1 ½” thick reinforced tines
- CN certified for use on their rail lines
- Made in USA
All HD rotation (2010).
Specifications | Dimensions
| Specifications | ||
|---|---|---|
| Tine Thickness | 1.5" | |
| Material | High Tensile Steel | |
| Weight (With Rotator) | 1,100 lb | |

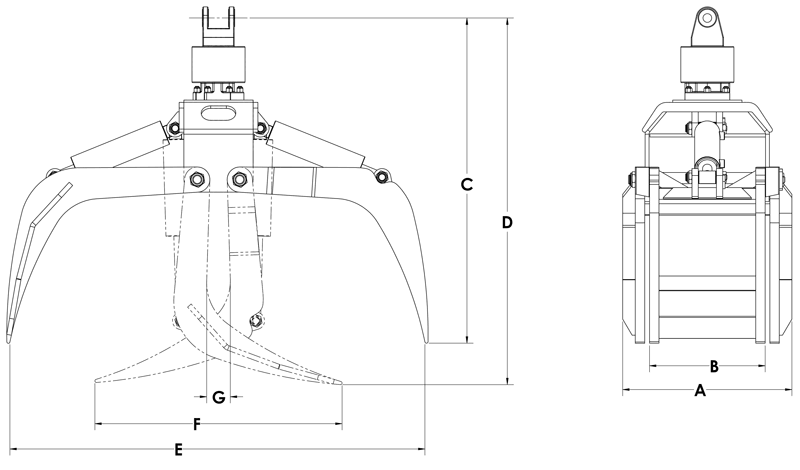

| Dimensions | ||
|---|---|---|
| A | 27" | |
| B | 18 3/8" | |
| C | 52" | |
| D | 63" | |
| E | 74" | |
| F | 39" | |
| G | 7" | |
